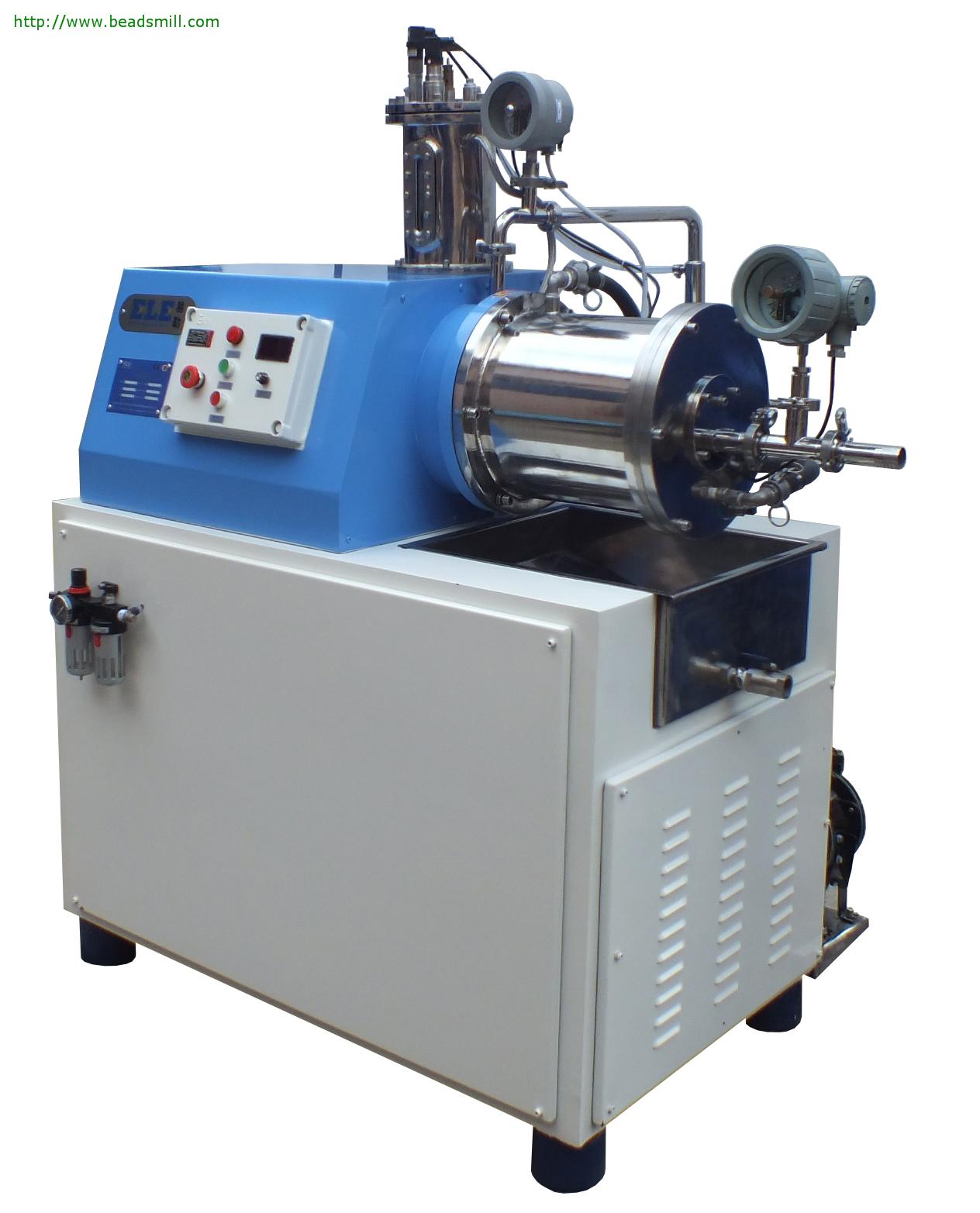

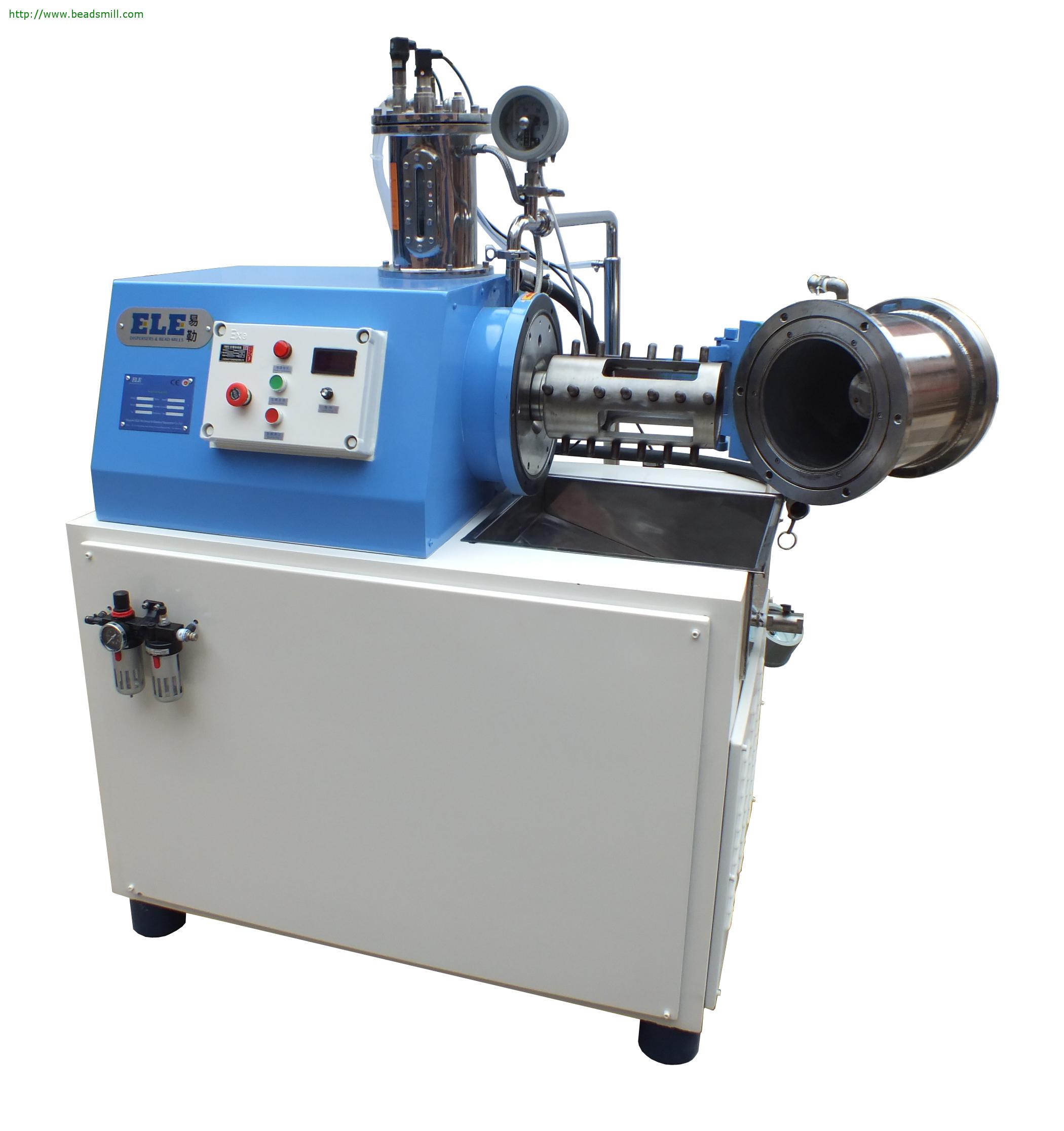

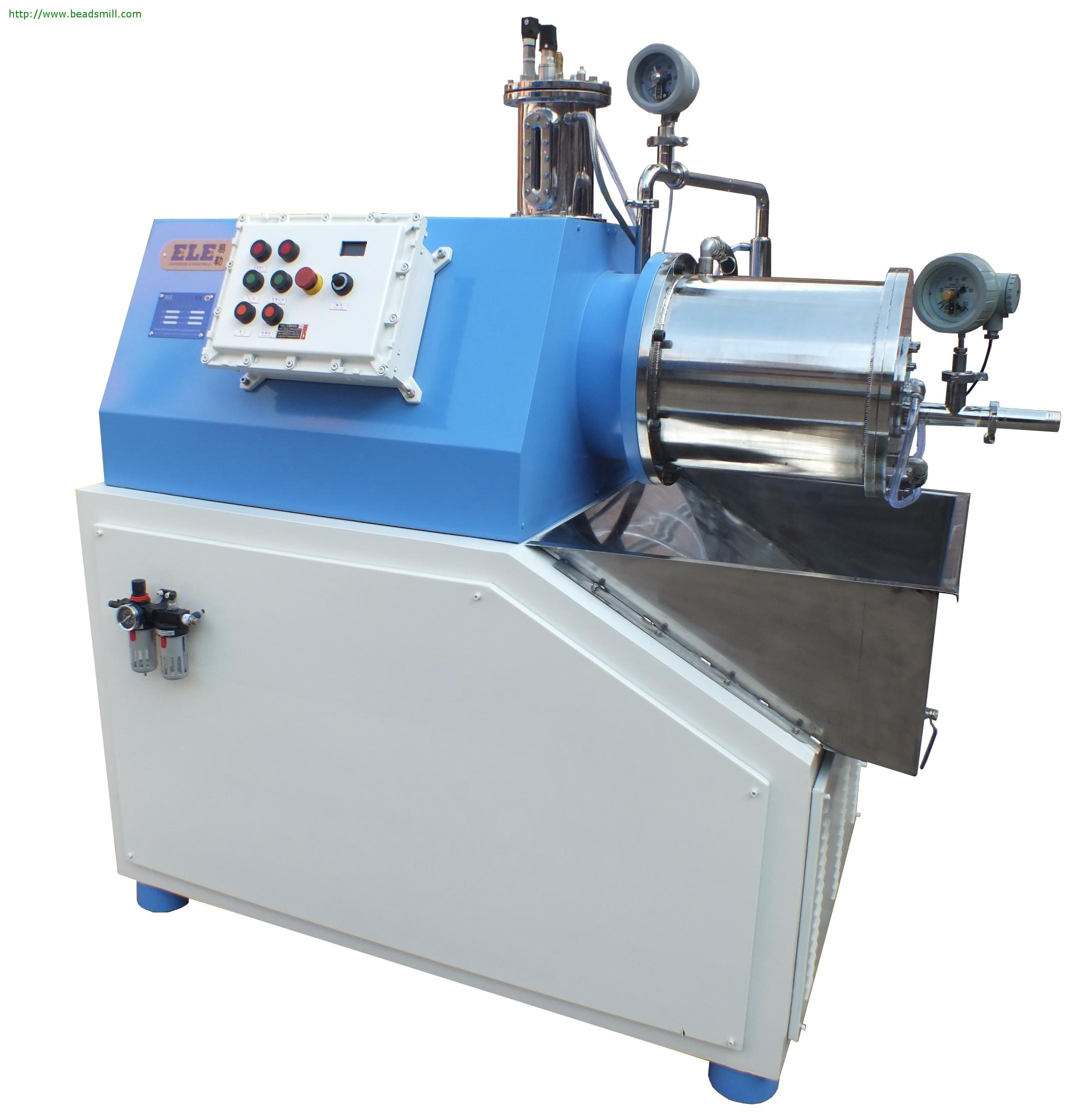

Nano Pin Type Bead Mill  EDW-Nano
The type is the world’s top wet grinding machine, designed and developed for ultrafine grinding materials of high cleanliness and without metal contamination. High quality of ELE Full Ceramic Pin Type Bead  Mill not only comes from its outstanding processing technology, but also sources on strict quality  control for raw material .All used high -purity ceramic raw materials are imported.
Product Feature：
  • Full ceramic structure, high wearing resistance, no contaminations
    Multiple cooling system , powerful cooling efficiency
    Efficient separation system, not block or break beads, discharging more smoothly and more quickly
    High energy intensive output, even smaller grinding fineness
    With excellent length and diameter ratio, narrower particle size distribution

Configuration parameters：
  • The rotor material: high wearing resistant ceramic zirconia
    Chamber material: high wearing resistant ceramic zirconia/silicon carbide
    Sealing way: cartridge double mechanical seal, dedicated to bead mill, specially designed for materials with small granule .Whole unit, convenient to install and use, no need professionals to change it
    Discharging sieve specifications: large area of tubular reseau, 0.05/0.1/0.3/0.5 mm optional
    Instrument: electric contact pressure gauge & electric contact temperature gauge (with temperature protection, automatic stop over limit).
    Feeding pump: pneumatic diaphragm pump, screw pump or gear pump
    Grinding medium: pure zirconia beads with more than 95% zirconium content, beads size 0.1~1.0mm
    Electrical control system: explosion-proof/non explosion-proof configuration optional, with site operation panel (touch screen/frequency infinitely adjustable-speed optional)

Application：

Paint: automobile paint, finish paint, wood paint, industrial paint, etc
Printing ink: gravure printing ink, offset printing ink, silk screen ink, UV light solid ink, inkjet, etc
color paste, pigment, carbon black, phthalocyanine blue, yellow, titanium dioxide, dyestuff, pen liquid, watercolor
Electronic materials: battery diaphragm alumina, Fe batteries, ceramic slurry,
Chocolate syrup, pesticide concentrated suspension, biologic medicine, cosmetics, microbial functional materials.
Nanometer material,  metal oxide, magnetic materials, papermaking industry, optoelectronic industry.

Contact us：

E-MAIL:sale@elemix.cn

E-MAIL:sale@elemix.cn


Technical data：

Model
 Chamber volume/L

Power/Kw

Speed/rpm

Output/L/H

Dimension/mm

Weight/kg

EDW-5
 5
 7.5-11
 1500
 30-200
 1300X1050X450
 650
EDW-10
 10 15-30
 1200
 50-300
 1600X1450X650
 980
EDW-15
 15 30-37
 1000-1500
 100-500
 1600X1450X650
 1200
EDW-30
 30 37-45
 700-1200
 200-1000
 1650X1550X750
 1700
EDW-50
 50 55-75
 500-800
 500-2000
 1900X1850X850
 2300
