EDW-Nano

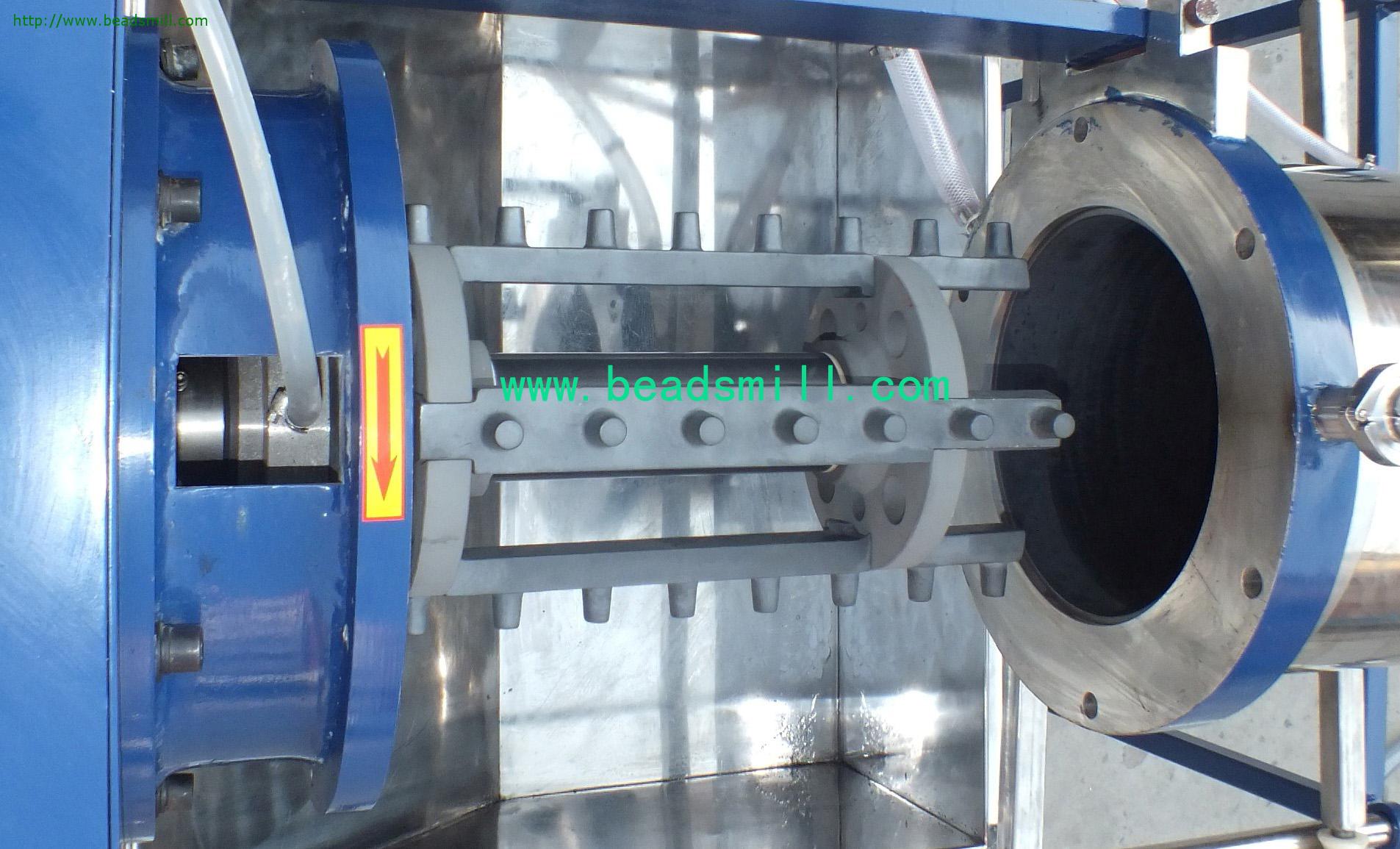

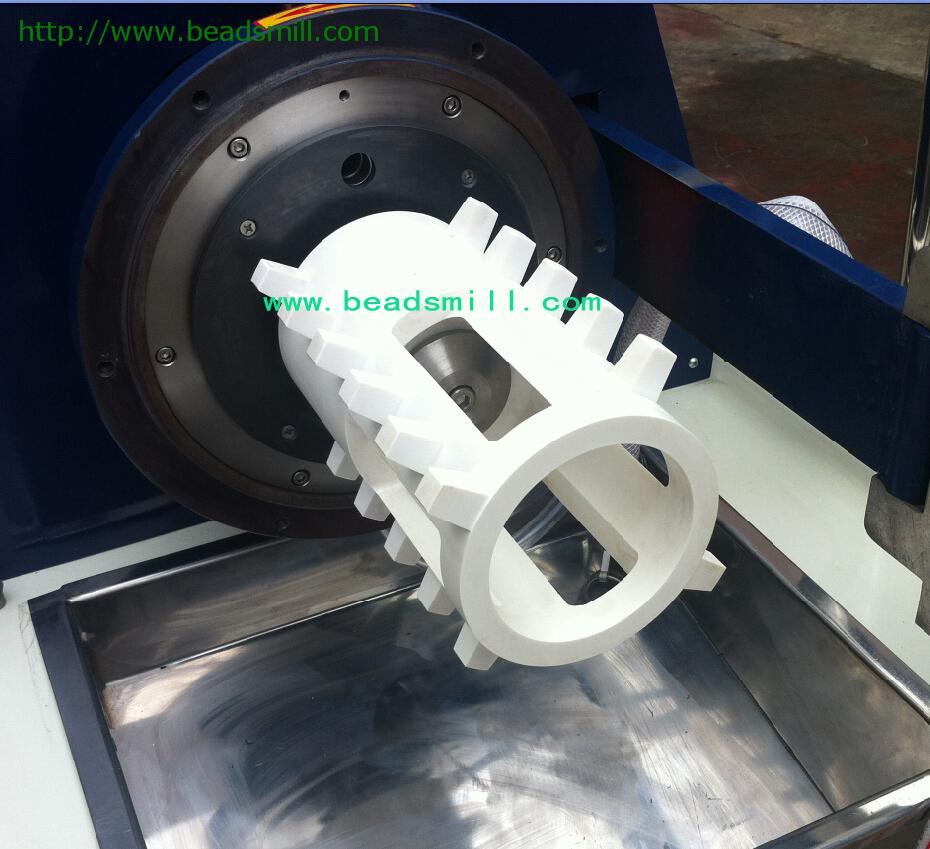

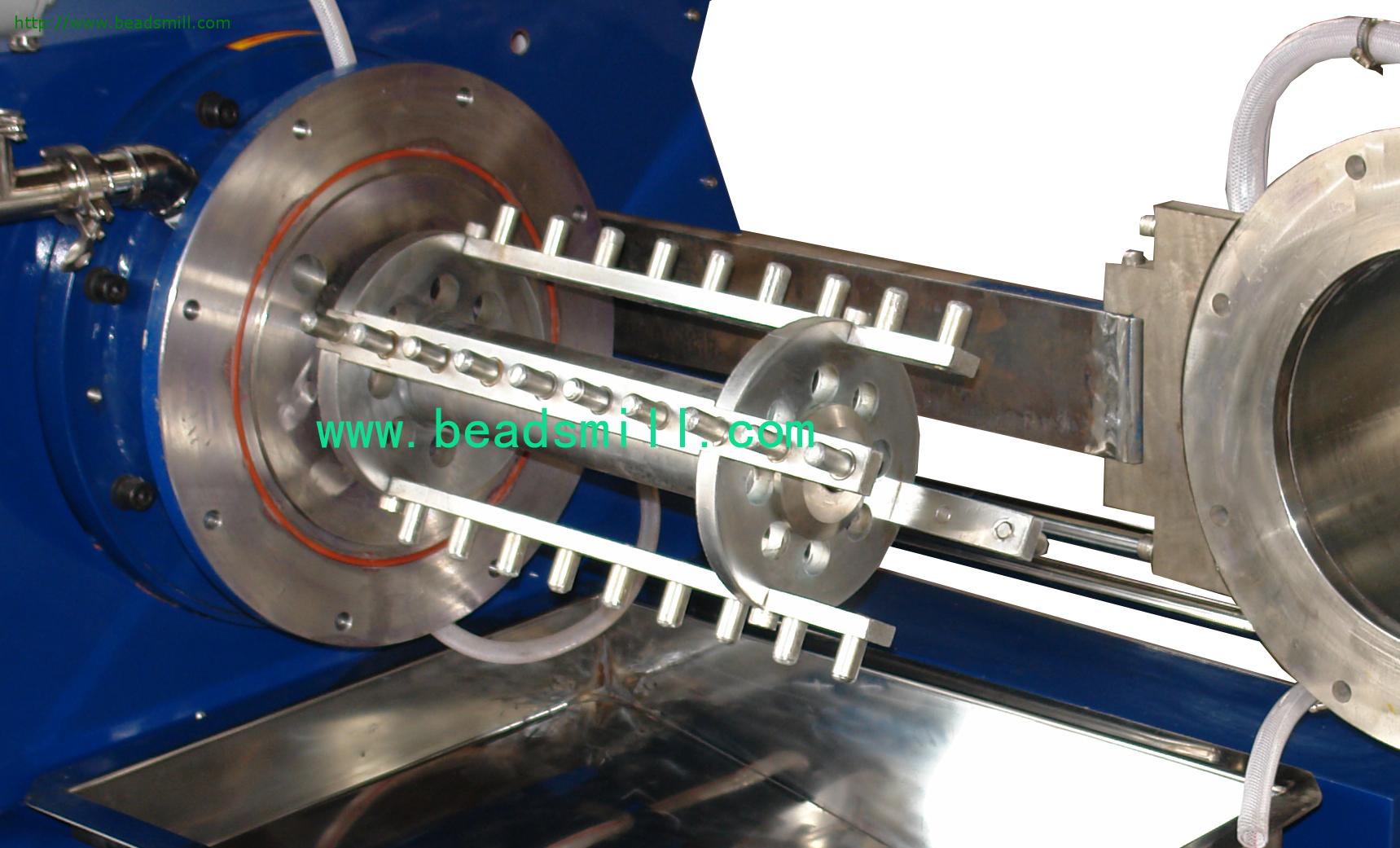

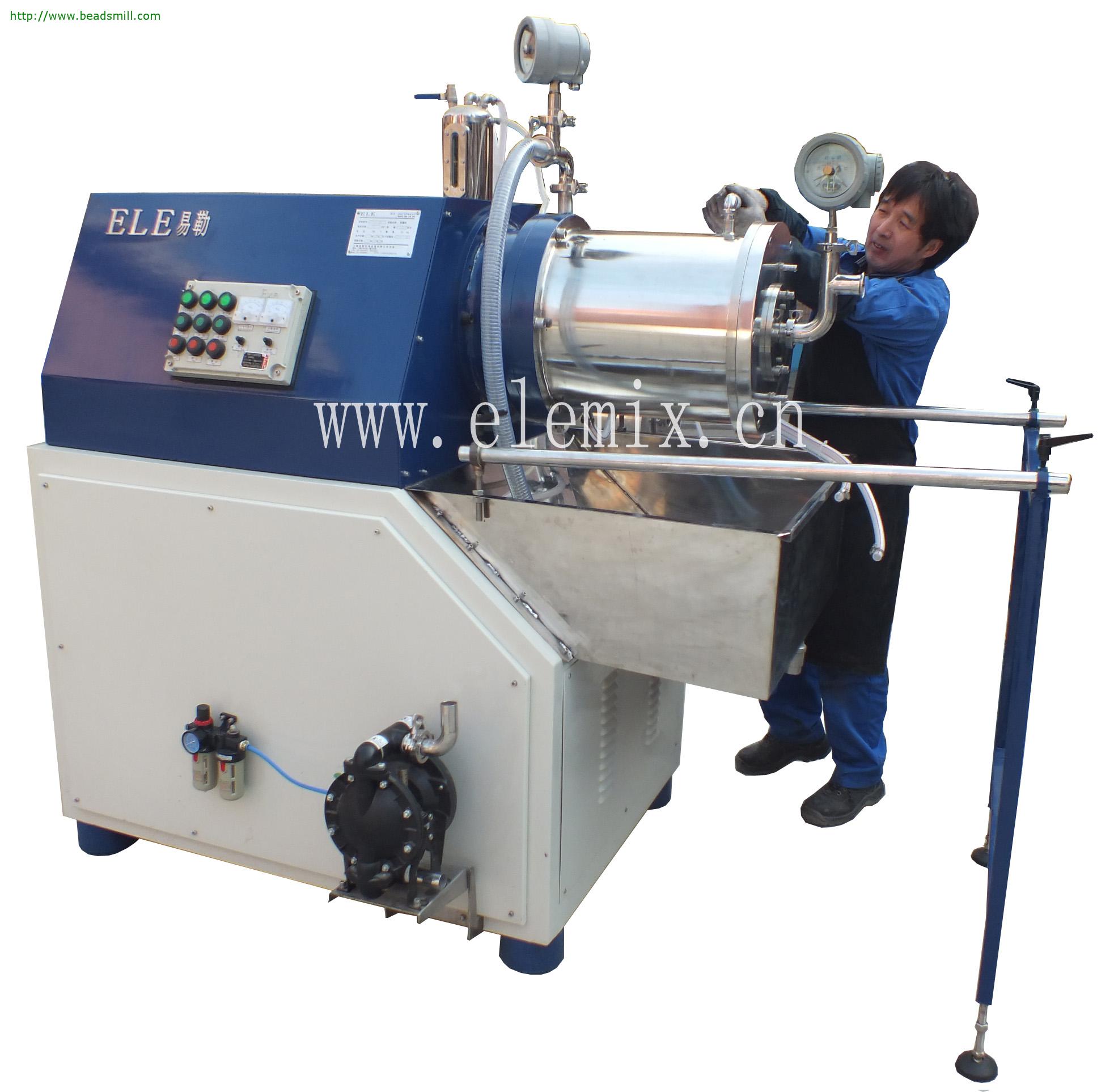

Nano Pin Type Bead Mill EDW-Nano |
|
The type is the world’s top wet grinding machine, designed and developed for ultrafine grinding materials of high cleanliness and without metal contamination. High quality of ELE Full Ceramic Pin Type Bead Mill not only comes from its outstanding processing technology, but also sources on strict quality control for raw material .All used high -purity ceramic raw materials are imported. | |
Product Feature: |
|
|
Configuration parameters:
Application: Paint: automobile paint, finish paint, wood paint, industrial paint, etcPrinting ink: gravure printing ink, offset printing ink, silk screen ink, UV light solid ink, inkjet, etc color paste, pigment, carbon black, phthalocyanine blue, yellow, titanium dioxide, dyestuff, pen liquid, watercolor Electronic materials: battery diaphragm alumina, Fe batteries, ceramic slurry, Chocolate syrup, pesticide concentrated suspension, biologic medicine, cosmetics, microbial functional materials. Nanometer material, metal oxide, magnetic materials, papermaking industry, optoelectronic industry. Contact us: E-MAIL:sale@elemix.cn |
|
Technical data:
Model |
Chamber volume/L |
Power/Kw |
Speed/rpm |
Output/L/H |
Dimension/mm |
Weight/kg |
EDW-5 |
5 |
7.5-11 |
1500 |
30-200 |
1300X1050X450 |
650 |
EDW-10 |
10 |
15-30 |
1200 |
50-300 |
1600X1450X650 |
980 |
EDW-15 |
15 |
30-37 |
1000-1500 |
100-500 |
1600X1450X650 |
1200 |
EDW-30 |
30 |
37-45 |
700-1200 |
200-1000 |
1650X1550X750 |
1700 |
EDW-50 |
50 |
55-75 |
500-800 |
500-2000 |
1900X1850X850 |
2300 |
