ELE® company began to develop market in China since 1996 and built factory in Pudong, Shanghai in 2006.By now ELE® has developed as a global centre of machining and service.
The type is the world’s top wet grinding machine, designed and developed for ultrafine grinding materials of high cleanliness and without metal contamination.
ELE equipment is suitable for various branches of chemical industry. Our engineers with rich experience, our technology integration centre will make best solution for your process.

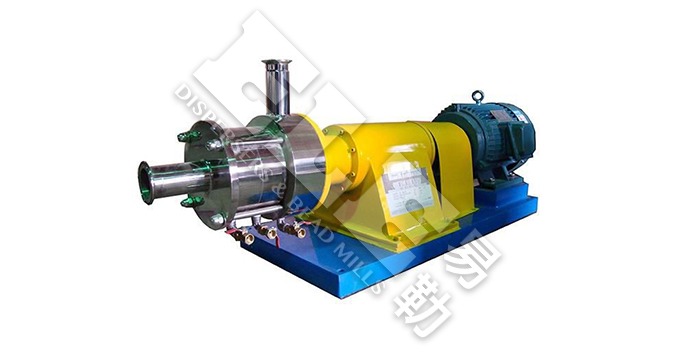

Inline High-shear Homogenizer is a continuous production type emulsifier with high efficiency. It processes materials in continuous production or circulation of fine materials. The motor drives the rotor to rotate at high speed. It narrows the particle size of Liquid-liquid and liquid-solid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. It can be equipped with materials transfer pump in front of it to make it suitable for materials with mid-and-high viscosity.
Working Principle
Specification
· The grinding cavity is consists of three groups of stator and rotor (2 layers, 4 layers and 6 layers), highly working accuracy, large capacity and wide viscosity, more suitble for industrial on-line production.
· High shear emulsion pump is best emulsifying effect and top efficiency, more suitable for production which need high requirement for emulsifying, then it is the first choice for the micro-emuslion production.
· According to your PH, there are materials of ss304 and 316L for your choice.
· Adopting double mechanicial seal also can configure water protector
· It is elastic connection, low noisy and table performance.
· It can design jacket for cooling and heating.
Machine Details
Data Sheet & Models
Model
Power(kw)
Rotation Speed(rpm)
Flow(m3/h)
Entrance (mm)
Exit (mm)
ELR401/3
1.1/1.5
3000
0.5
DN40
DN32
ELR405/3
4
3000
2
DN40
DN32
ELR410/3
7.5
3000
4
DN50
DN40
ELR415/3
11
3000
6
DN60
DN50
ELR420/3
15
3000
12
DN60
DN50
ELR425/3
18.5
1500/3000
16
DN60
DN50
ELR430/3
22
1500/3000
18
DN60
DN50
ELR450/3
37
1500
26
DN100
DN80
ELR460/3
45
1500
30
DN125
DN100
ELR475/3
55
1500
32
DN125
DN100
ELR490/3
75
1500
45
DN125
DN100
ELR510/3
90
1500
55
DN125
DN100
ELR530/3
110
1500
70
DN150
DN125
MAINTENANCE & SERVICES
1.Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;
2.We provide you opeatian manual by chinese or English;
3.We offer you Videos for equipment installation and maintenance in both English and Chinese;
4.With three years of spare parts inventory to ensure normal use and make you to be in trouble free;
5.Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;
6.After delivery, our professional engineer will offer on-site guidance debugging free of charge, according to different characteristic of materials, to set up the operational parameters of the mill and ensure optimal grinding quality & equipment running status;
7.After the warranty period, we provide maintenance and maintenance service, only charge
the cost;
8.Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
