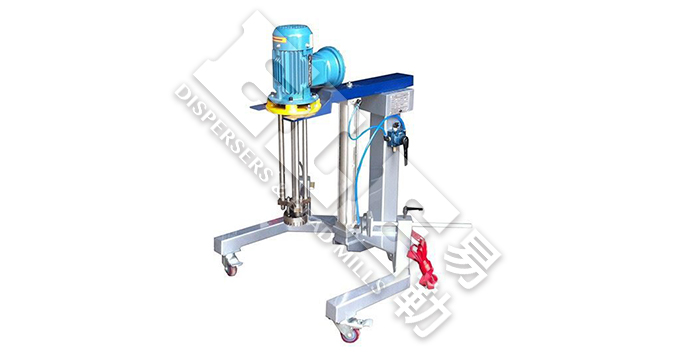

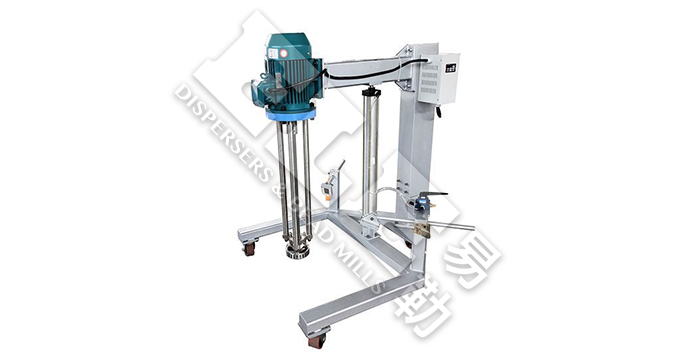

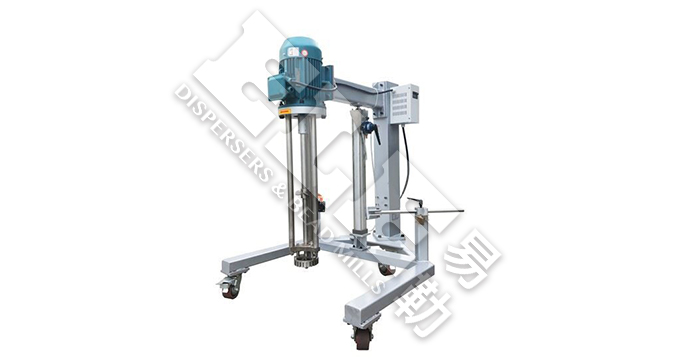

EBR Series Pneumatic Lifting High Shear Emulsifier
● The whole machine system adopt pneumatic lift style, frequency converter speed adjusting system, easy to operation and maintenance. The bi-direction material absorption system make the best homogenizing effect. This model is widely used in cream, ointments, sauce, flavoring emulsions and pharmaceutic products etc.
● The stator and rotor is fine forging, linear cut forming, claw-type, two ways suction, high efficiency circulation, not dead corner.
● The Stator and rotor is after special heat treatment, the abrasion resistance is 2 to 3 times than the ordiary stainless steel.
● The key parts are after grinding processing, the combination between stator and rotor reach American Level standard.
● The rotating part is after the dynamic and static balance test, so that ensure the stability at condition of high speed rotation, reduce the noise, prolong the service life.
Machine Details
Application
Biology, pharmacy, food, ink, textile auxiliary, cosmetic lubricating oil and fertilizer etc. solution, gel, suspension or emulsion Juice, soup bases, milk production, mayonnaise, tissue homogenate, shampoo, lotion, emulsion, surfactants, asphalt, oil field chemicals, lubricant, etc.
Data Sheet & Models
|
Model
|
Power/KW
|
suggested capacity/L
|
Rotation/rpm
|
Liftingheight
(mm)
|
Material
|
|
EBR-1.1
|
1.1
|
<100
|
3000
|
600
|
SUS304/316L
|
|
EBR-2.2
|
2.2
|
<150
|
3000
|
700
|
SUS304/316L
|
|
EBR-4
|
4
|
<200
|
3000
|
800
|
SUS304/316L
|
|
EBR-7.5
|
7.5
|
<500
|
3000
|
900
|
SUS304/316L
|
|
EBR-11
|
11
|
<800
|
3000
|
900
|
SUS304/316L
|
|
EBR-15
|
15
|
<1200
|
1500/3000
|
900
|
SUS304/316L
|
|
EBR-18.5
|
18.5
|
<1800
|
1500/3000
|
1100
|
SUS304/316L
|
|
EBR-22
|
22
|
<2000
|
1500/3000
|
1100
|
SUS304/316L
|
|
EBR-30
|
30
|
<2500
|
1500
|
1100
|
SUS304/316L
|
|
EBR-37
|
37
|
<3000
|
1500
|
1600
|
SUS304/316L
|
|
EBR-45
|
45
|
<4000
|
1500
|
1600
|
SUS304/316L
|
|
EBR-55
|
55
|
<5000
|
1500
|
1600
|
SUS304/316L
|
MAINTENANCE & SERVICES
1. Before order, customer can take materials to ourvlab and make test grindings, spot-testing parameters like particle size distribution, obtain reliable data for model selection;
2. We provide you opeatian manual by chinese or English;
3. We offer you Videos for equipment installation and maintenance in both English and Chinese;
4. With three years of spare parts inventory to ensure normal use and make you to be in trouble free;
5. Within 12-months warranty period, we promise to change damaged parts free of charge by air or by sea;
6. After delivery, our professional engineer will offer on-site guidance debugging free of charge, according to different characteristic of materials, to set up the operational parameters of the mill and ensure optimal grinding quality & equipment running status;
7. After the warranty period, we provide maintenance and maintenance service, only charge the cost;
8. Meanwhile, our skillful grinding experts can offer you free professional technical consulting and service.
