Disc-type horizontal bead mill


EBW-Disc type

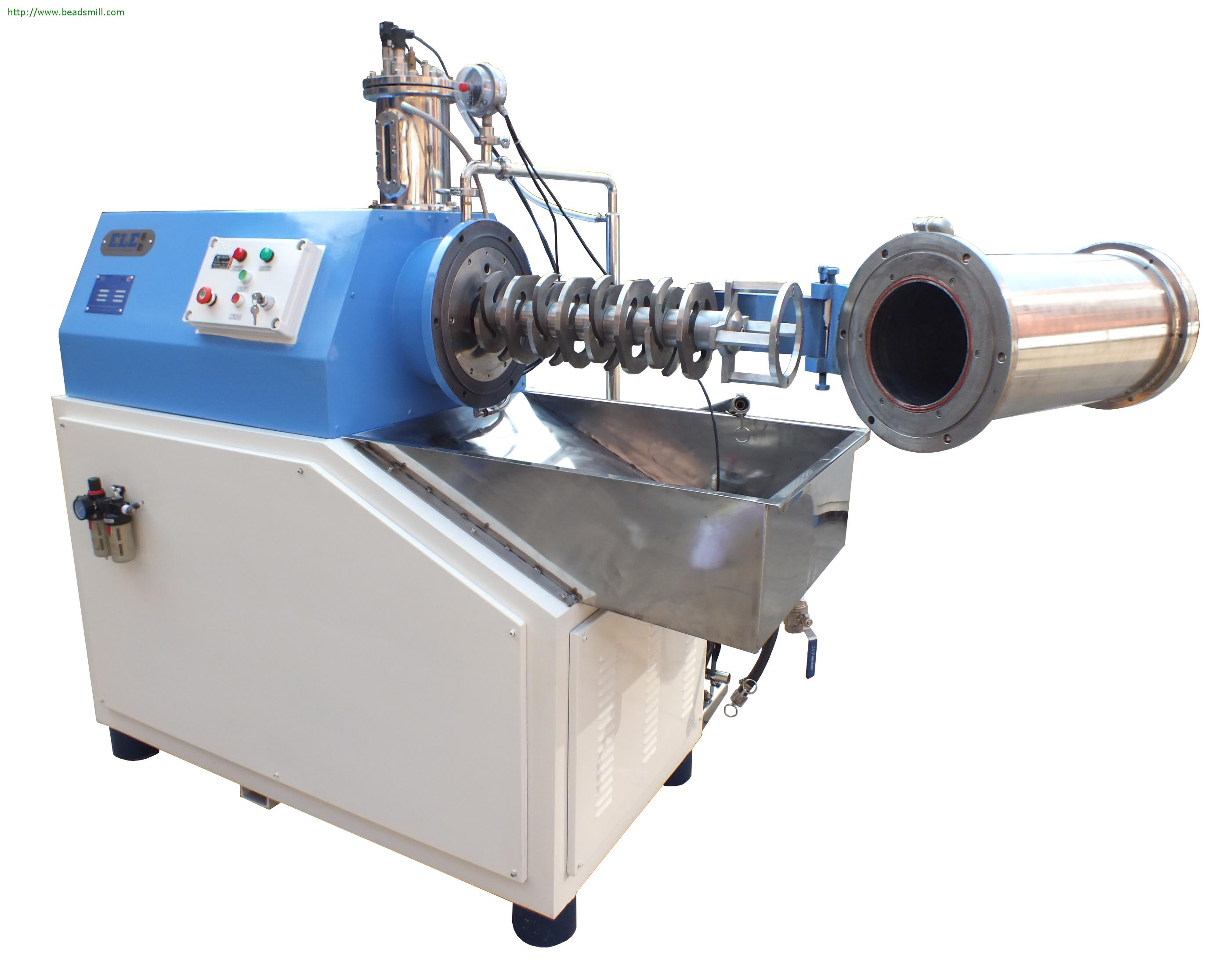

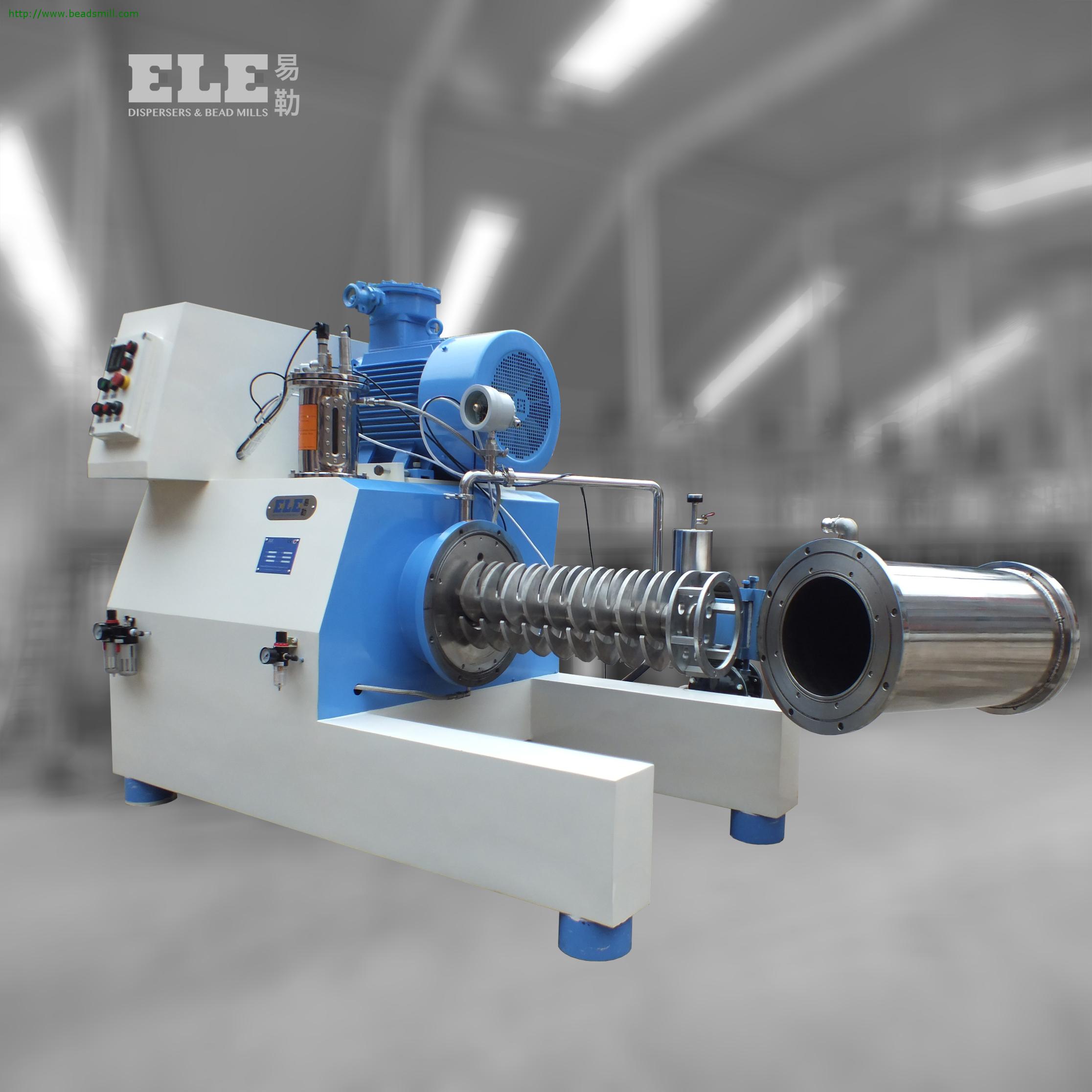

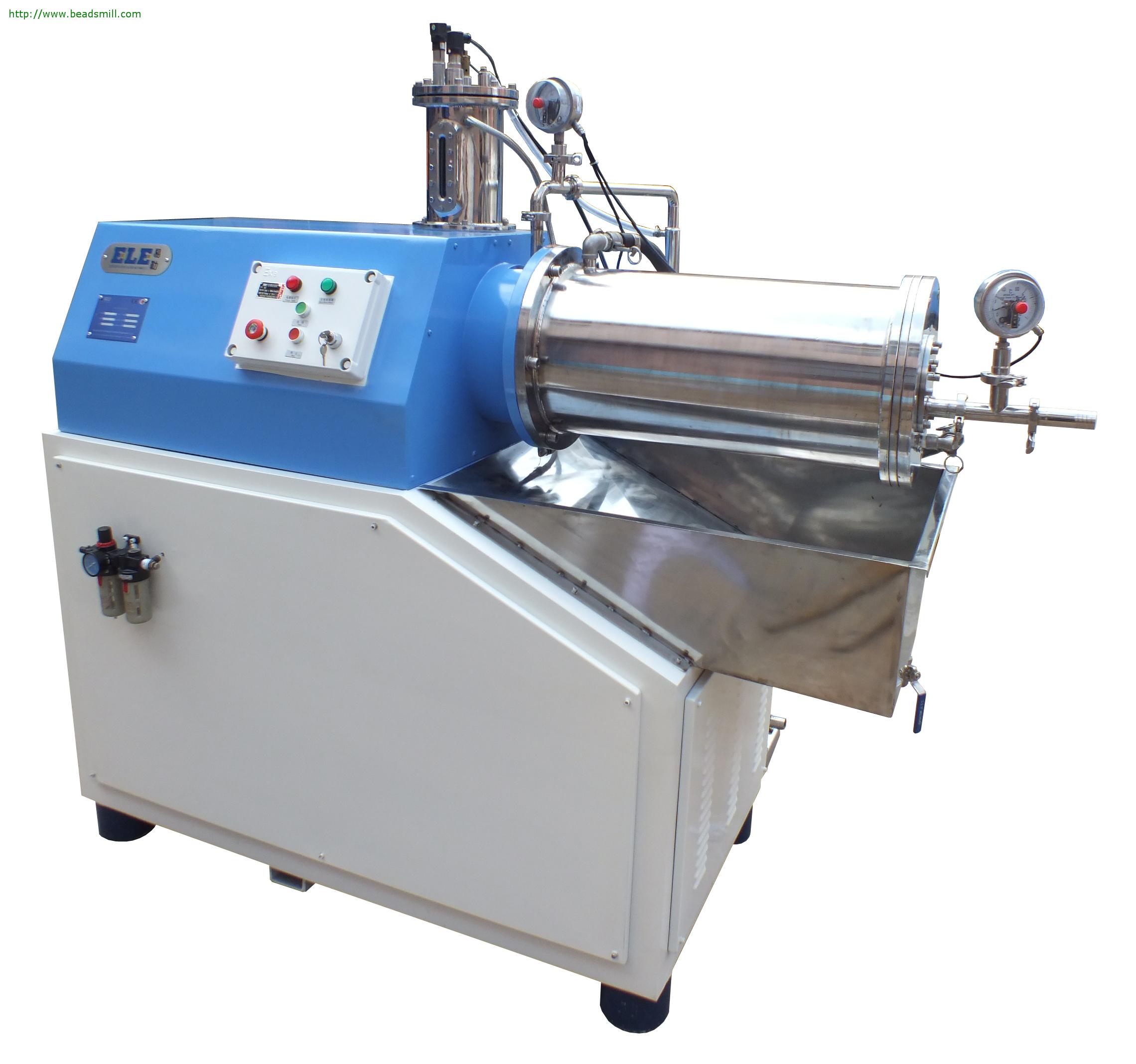

Disc type bead mill  EBW-Disc type



Disc bead mill stands market tests for long time, it can meet the demand for continuous mass production. The machine
adopts special wear-resisting material to ensure of long service life. It has strong adaptability of material
viscosity, easy to start, and has a low energy consumption ratio and high grinding efficiency. It can use explosion-
proof controller components to reach reliable explosion-proof requirements, also with advanced electric control system
and fault alarm device. Against different materials processing, different feeding pump is optional, such as air
diaphragm pimp, gear pump.
Product Feature：
  • Suitable for low and medium viscosity materials, and  micron  scale fineness
    Multiple cooling system , powerful cooling efficiency
    Efficient separation system, not block or break beads, discharging more smoothly and more quickly
    High energy intensive output, even smaller grinding fineness
    With excellent length and diameter ratio, narrower particle size distributio

Configuration parameters：

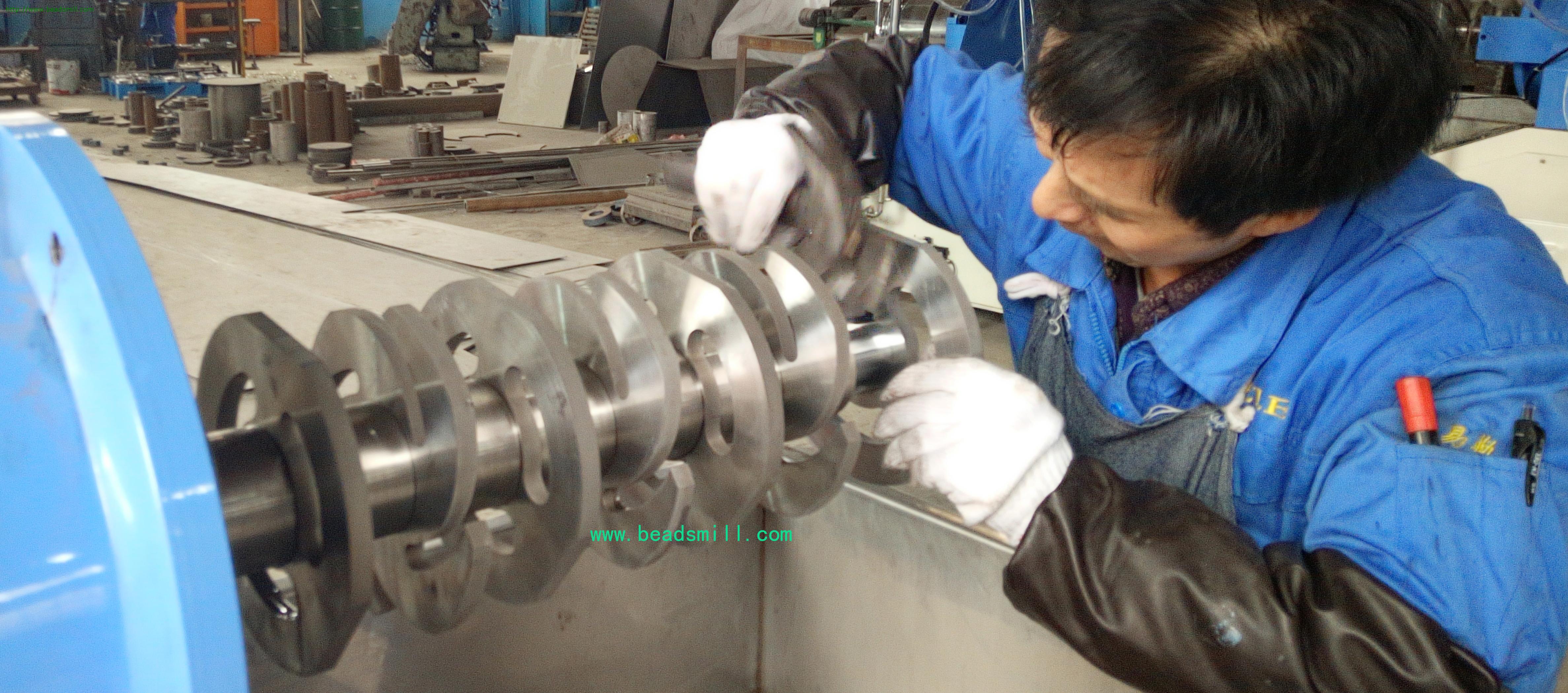

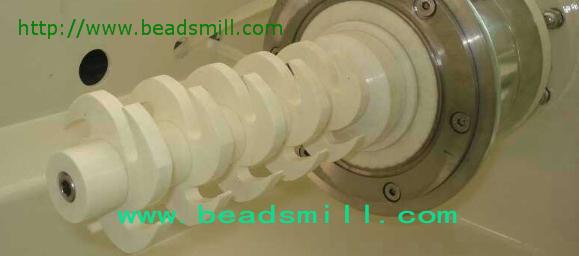

  • The rotor material: high wearing resistant steel/ceramic zirconia/silicon carbide/polyurethane, etc
    Chamber material: high wearing resistant steel/ceramic zirconia/silicon carbide/polyurethane , etc
    Sealing way: cartridge double mechanical seal, dedicated to bead mill, specially designed for materials with small

    granule .Whole unit, convenient to install and use, no need professionals to change it
    Discharging sieve specifications: large area of tubular reseau, 0.05/0.1/0.3/0.5 mm optional
    Instrument: electric contact pressure gauge & electric contact temperature gauge (with temperature protection,

    automatic stop over limit).
    Feeding pump: pneumatic diaphragm pump, screw pump or gear pump
    Grinding medium: pure zirconia beads with more than 95% zirconium content, beads size 0.1~1.0mm
    Electrical control system: explosion-proof/non explosion-proof configuration optional, with site operation panel (touch

    screen/frequency infinitely adjustable-speed optional)

Application：

Paint: automobile paint, finish paint, wood paint, industrial paint, etc
Printing ink: gravure printing ink, offset printing ink, silk screen ink, UV light solid ink, inkjet, etc
color paste, pigment, carbon black, phthalocyanine blue, yellow, titanium dioxide, dyestuff, pen liquid, watercolor
Electronic materials: battery diaphragm alumina, Fe batteries, ceramic slurry,
Chocolate syrup, pesticide concentrated suspension, biologic medicine, cosmetics, microbial functional materials.
Nanometer material,  metal oxide, magnetic materials, papermaking industry, optoelectronic industry.

Contact us：

E-MAIL:sale@elemix.cn

E-MAIL:sale@elemix.cn


Technical data：

Model
 Chamber volume/L

Power/Kw

Speed/rpm

Output/L/H

Dimension/mm

Weight/kg

EBW-5
 5
 5.5 2500
 30-300
 1300X1050X450
 640
EBW-20
 20 22
 1200
 50-800
 1600X1450X650
 1250
EBW-30
 30 30
 1060
 100-1200
 1650X1550X750
 1600
EBW-50
 50 45 820 200-2000
 1900X1750X850
 2100
EBW-100
 100 75 660 500-3000
 2300X2150X1550
 3600
