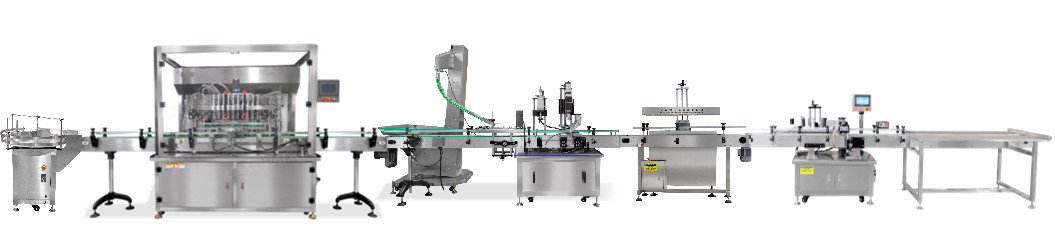

Pesticide filling production line

Automatic bottle unscrambler

Power : 0.12KW, Single-phase 220V, 50HZ

Turntable diameter 800mm, suitable for bottle diameter 40-130mm, height 30-200mm

Self-flowing liquid filling machine + feeding pump

Power : 0.45KW

Filling Head : 6

Filling Range : 50ml-5000ml

Filling Speed :5-7 bottle /min

Filling accuracy： ±1%

Feeding Cap & Capping Machine

Power : 2.0 KW,

Cap diameter: Φ 20-65

Bottle diameter : 30-150mm

Bottle Height : 38mm-300mm

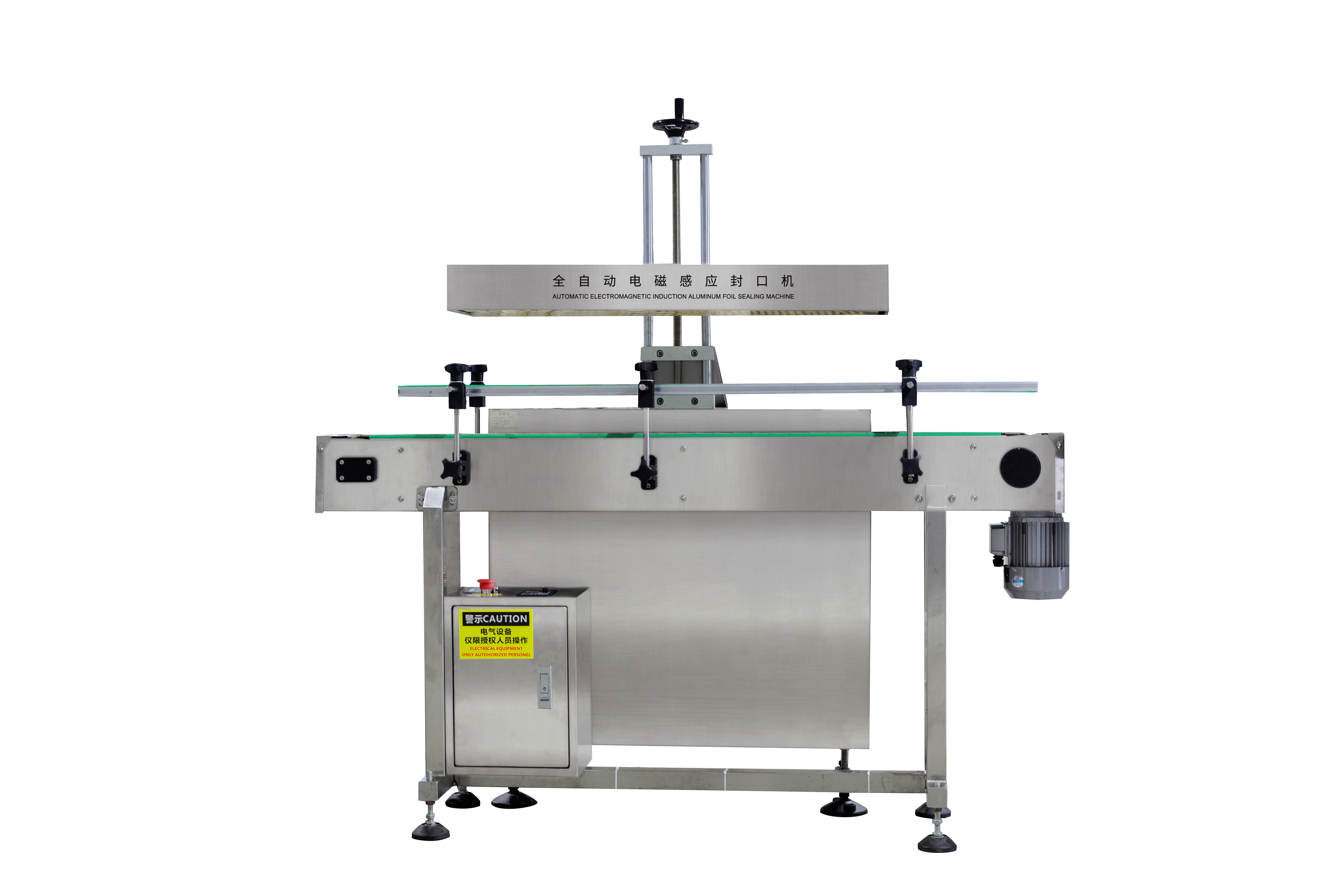

Aluminum foil sealing machine

Power : 2800 W

Sealing diameter: Φ50-120mm

Sealing Speed : 0-260 bottle /mins

Cooling : air cooling

Sealing bottle height : 10-350ml

Rolling round bottle labeling machine with printing machine

Power : 1.74KW

Labeling accuracy： ±1mm

Labeling Speed : 20-40/ min

Suitable label size : Length: 6mm～260mm Width (bottom paper width): 10mm～150mm

Applicable label: Roll label (inner diameter Ф76mm, outer diameter Ф300mm or less)

1.5M Collection Platform (SUS 304)
