Asphalt Mixing Machine

Asphalt Mixing machine is a continuous production type emulsifier with high efficiency. It processes materials in continuous production or circulation of fine materials. The motor drives the rotor to rotate at high speed. It narrows the particle size of Liquid-liquid and liquid-solid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result.

Working Principle

Has Three groups of rotors and stators

First group: One rotor and one stator

Second group: Two rotors and two stators

Third Group: Three rotors and three stators

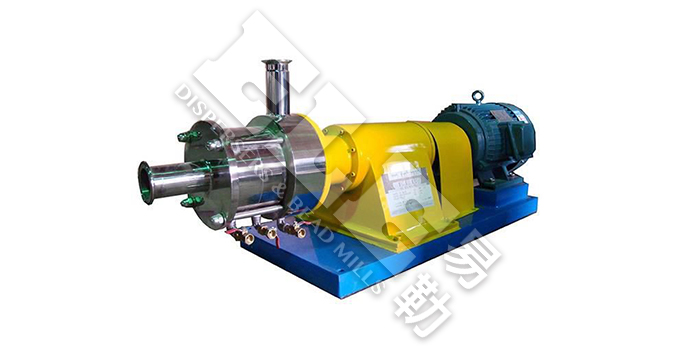

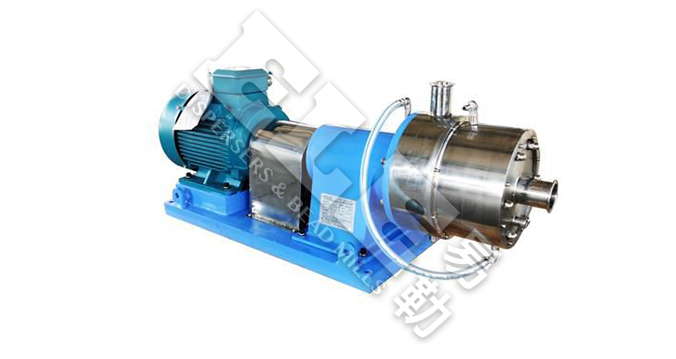

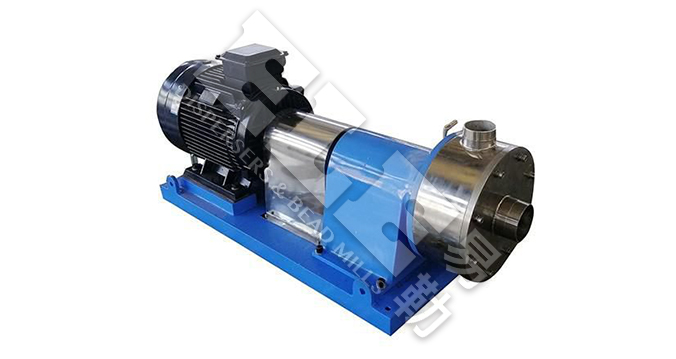

Machine photos

Application

Asphalt Mixing machine wholesale

Data Sheet & Models

Model	Power(kw)	Rotation Speed(rpm)	Flow(m3/h)	Entrance(mm)	Exit(mm)
ELR401/3	1.1/1.5	3000	0.5	DN40	DN32
ELR405/3	4	3000	2	DN40	DN32
ELR410/3	7.5	3000	4	DN50	DN40
ELR415/3	11	3000	6	DN60	DN50
ELR420/3	15	3000	12	DN60	DN50
ELR425/3	18.5	1500/3000	16	DN60	DN50
ELR430/3	22	1500/3000	18	DN60	DN50
ELR450/3	37	1500	26	DN100	DN80
ELR460/3	45	1500	30	DN125	DN100
ELR475/3	55	1500	32	DN125	DN100
ELR490/3	75	1500	45	DN125	DN100
ELR510/3	90	1500	55	DN125	DN100
ELR530/3	110	1500	70	DN150	DN125

Professional technical supports & Processing Machines

Our engineers are around 20years rich experience in this area, professional skills and stable processing.

We have lathes, grinder, drilling machine, boring machine, polishing machine, milling machine…etc.

Office

Fine process center

Polishing center

Welding

Gringding
